Redesigned Core module board

Significant improvements against the original design¶

• Only six bridges: NO wires under the board ;

• Fully equipped with in-circuit components ;

• 7 pin DIN connector for phantom power support through MIDI IN ;

• Ready for direct rear panel mount.

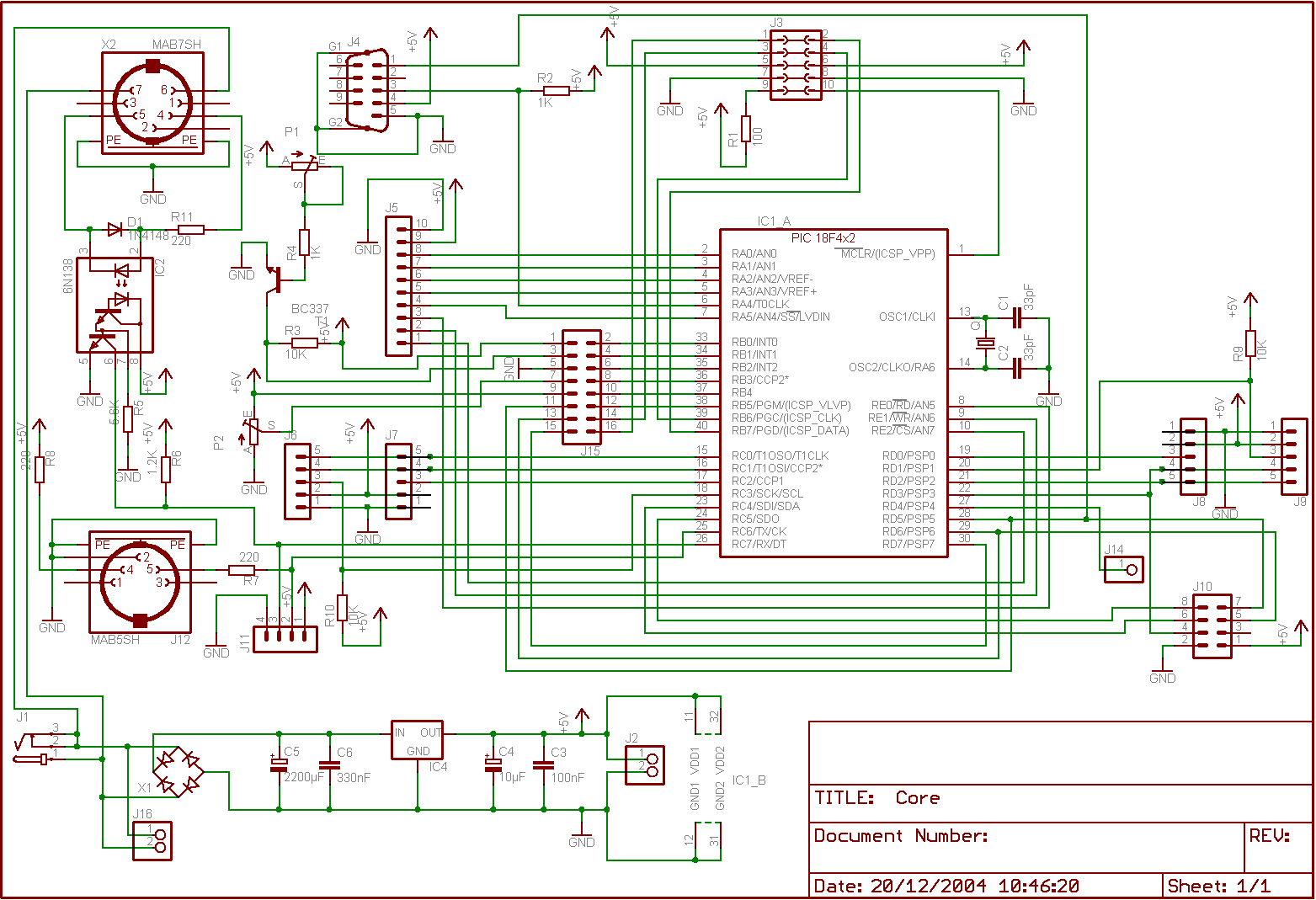

First let’s take a look at the schematic:

Core schematic

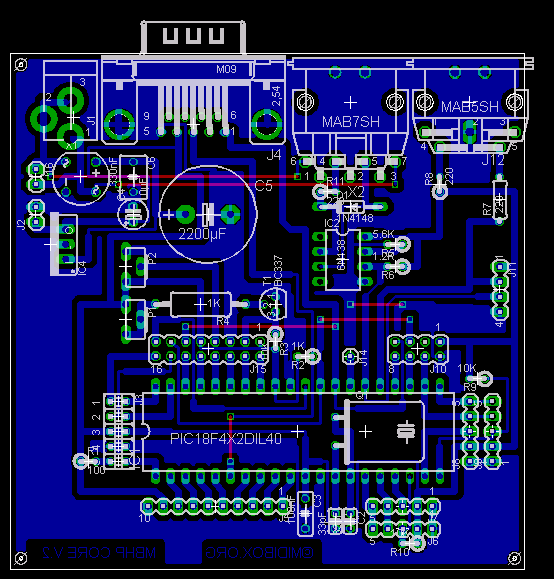

This is how the board looks like after about 5 hours of hard work:

Core board

Finally, here’s the partlist generated by EAGLE:
partlist

And a netlist for those who need it:
netlist
